Simple Piezoelectric Droplet Generator

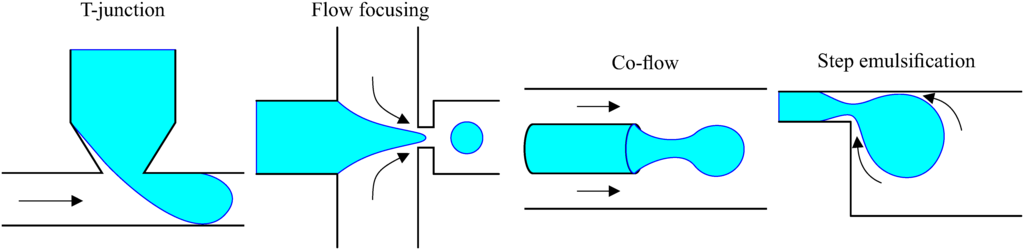

The present study describes a simple and robust droplet generator based on a piezoelectric actuator which is integrated into a microfluidic device.

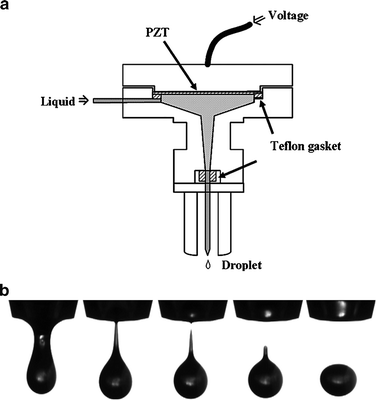

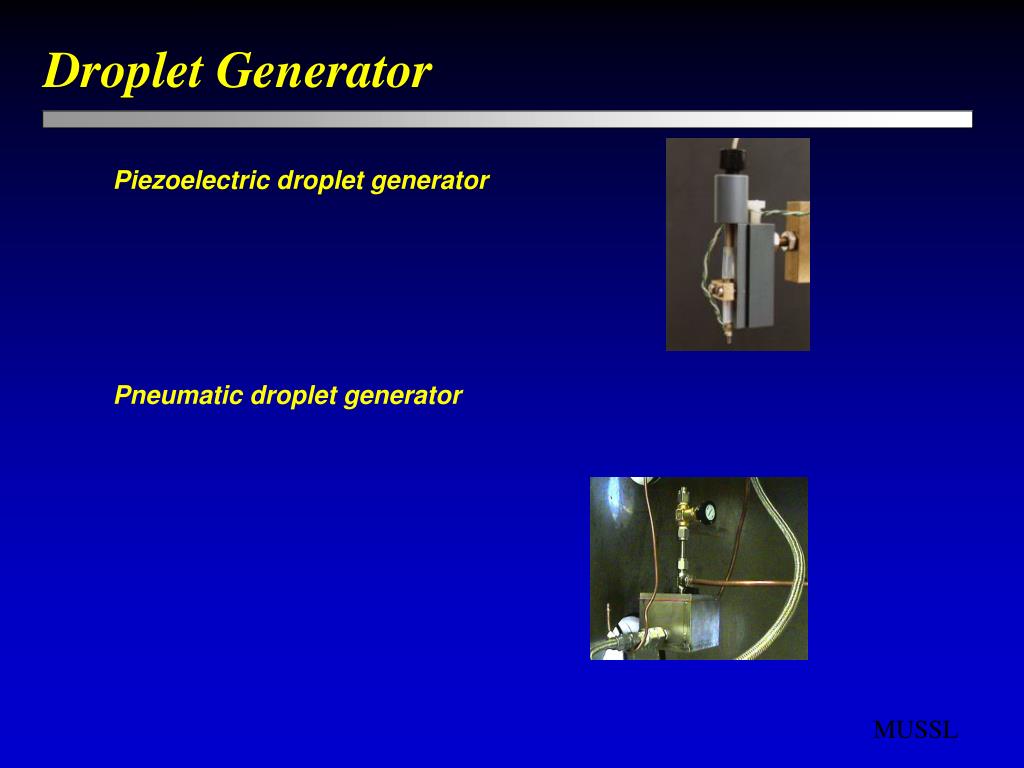

Simple piezoelectric droplet generator.

Work in the overpressure range droplet diameter from 50 lm 300 lm or function without pressure droplet diameter from 10 lm 100 lm. We demonstrate stable precise and drop on demand droplet formation for various solutions with precise control of waveform driving piezoelectric crystal inside the ink jet head. Droplet formation and ejection from a micromachined ultrasonic droplet generator. Its simple construction and ease of operation distinguish this generator from other previously reported.

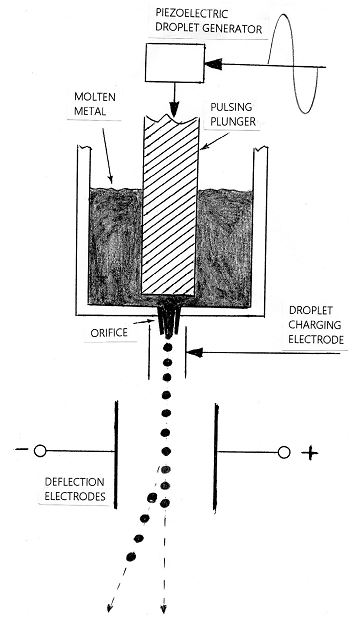

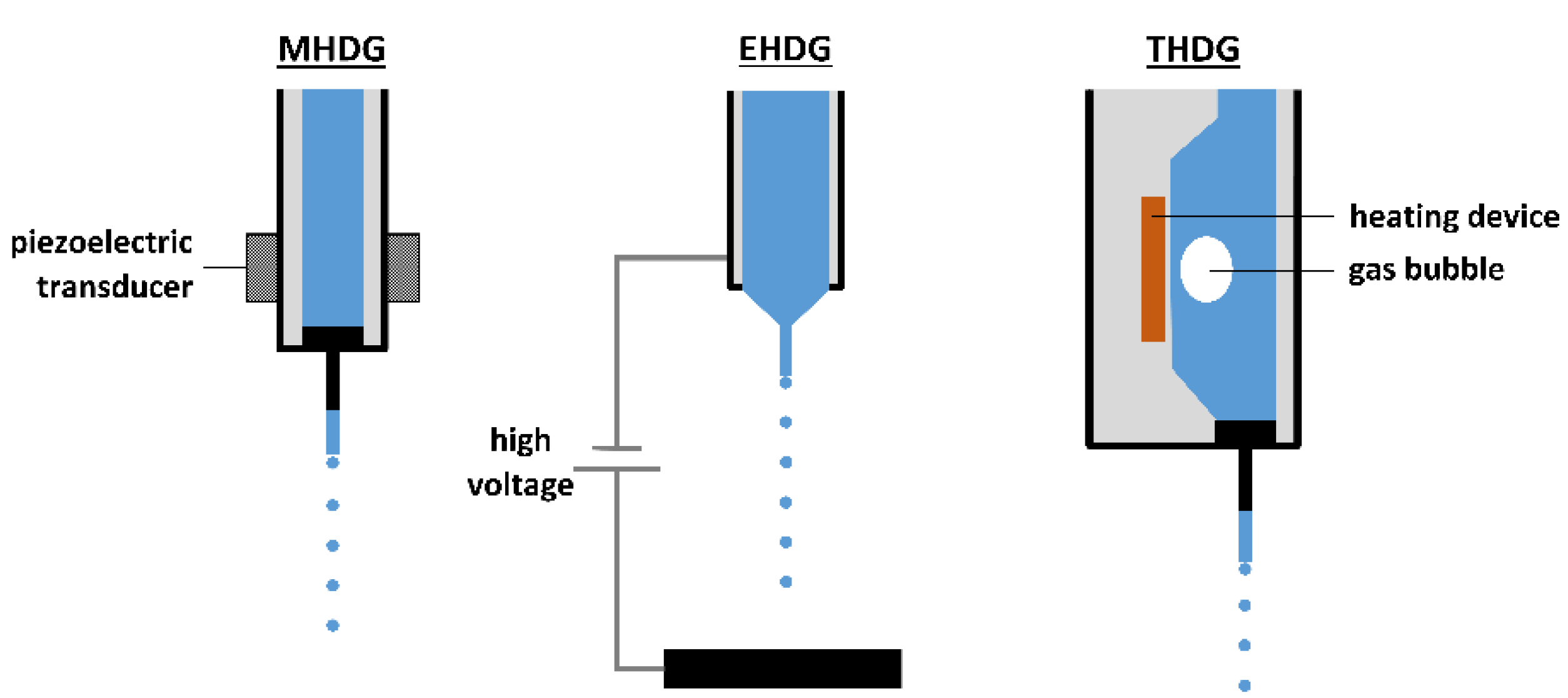

In this work we propose a piezoelectric droplet generator for injection of well defined amounts of sample in capillary electrophoresis. The piezoelectric droplet generator figure 1 generates monodisperse droplets on demand within the range of 20 100 µm at a selectable frequency of less than about 10 khz 13. A micromachined ultrasonic droplet generator is developed and demonstrated for drop on demand fluid atomization. The droplet generator is able to independently control the droplet size rate of formation and distance between droplets.

The generator is low cost and simple to fabricate. The droplet generator has been successfully used to produce droplets of aqueous solutions with very high dissolved salt loadings and is currently used to study droplet. In proceedings of the 1st international euspen conference. The piezoelectric droplet generator.

The droplet generator has been successfully used to produce droplets of aqueous solutions with very high dissolved salt loadings and is currently used to study droplet import and evaporation on a heated surface. A dod generator to produce droplets for their own bouncing abstract we present the design of a piezoelectric drop let on demand generator capable of producing droplets of highly repeatable size ranging from 0 5 to 1 4 mm in diam eter. Visualization and scaling article pdf available in physics of fluids 17 10 november 2005 with 1 236 reads. The droplet generator comprises a bulk ceramic piezoelectric transducer for ultrasound generation a reservoir for the ejection fluid and a silicon micromachined liquid horn structure as the nozzle.

The nozzles are formed using a simple batch microfabrication process that involves. A design for a piezoelectric on demand droplet generator is presented. Its simple construction and ease of operation distinguish this generator from others previously reported. 2 producing droplets by means of piezo droplet generators 2 1 droplet generator in the overpressure range when a liquid is forced through a nozzle by means of high.
